High-Quality Components
1. Dual 8-Pin ProCool II Power Connectors: Two ProCool connectors ensure a snug and reliable connection to the EPS12V power lines.
2. 18 Power Stages: The VRM features 18 power stages, each rated to handle 90 amps.
3. MicroFine Alloy Chokes: Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
4. 10K Japanese-Made Black Metallic Capacitors: Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
2. 18 Power Stages: The VRM features 18 power stages, each rated to handle 90 amps.
3. MicroFine Alloy Chokes: Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
4. 10K Japanese-Made Black Metallic Capacitors: Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
Cooling Heatsinks
1. VRM and Aluminum I/O Heatsink: A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
2. Extended VRM & M.2 Heatsink: The extended heatsink helps further cool the VRM and an M.2 drive mounted in the primary onboard slot.
3. Aluminum M.2 Heatsink: An aluminum heatsink cover efficiently cools an M.2 drive mounted in the second onboard slot.
4. M.2 Backplates: The two onboard M.2 slots feature backplate blocks to help cool high-performance drives, even when airflow is restricted.
2. Extended VRM & M.2 Heatsink: The extended heatsink helps further cool the VRM and an M.2 drive mounted in the primary onboard slot.
3. Aluminum M.2 Heatsink: An aluminum heatsink cover efficiently cools an M.2 drive mounted in the second onboard slot.
4. M.2 Backplates: The two onboard M.2 slots feature backplate blocks to help cool high-performance drives, even when airflow is restricted.
Cooler by Design
ROG Maximus XIII Apex features comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.
1. Multiple temperature sources: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
2. 4-pin PWM/DC Fan Headers and ASUS HYDRANODE: Every onboard header auto-detects any PWM or DC fan, and three chassis fan headers offer ASUS HYDRANODE support.
3. AIO Pump: A dedicated PWM/DC header supports self-contained water-cooling setups.
1. Multiple temperature sources: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
2. 4-pin PWM/DC Fan Headers and ASUS HYDRANODE: Every onboard header auto-detects any PWM or DC fan, and three chassis fan headers offer ASUS HYDRANODE support.
3. AIO Pump: A dedicated PWM/DC header supports self-contained water-cooling setups.
ASUS OptiMem III
With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies and reduced voltages while operating at higher frequencies. Stack ROG Maximus XIII Apex with your favorite modules and maximize the throughput of the 11th Gen Intel Core Rocket Lake processor for applications that demand massive
Next Generation Networking
1. Intel® Wi-Fi 6E (Gig+):
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
2. Dual Intel 2.5 Gb Ethernet:
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

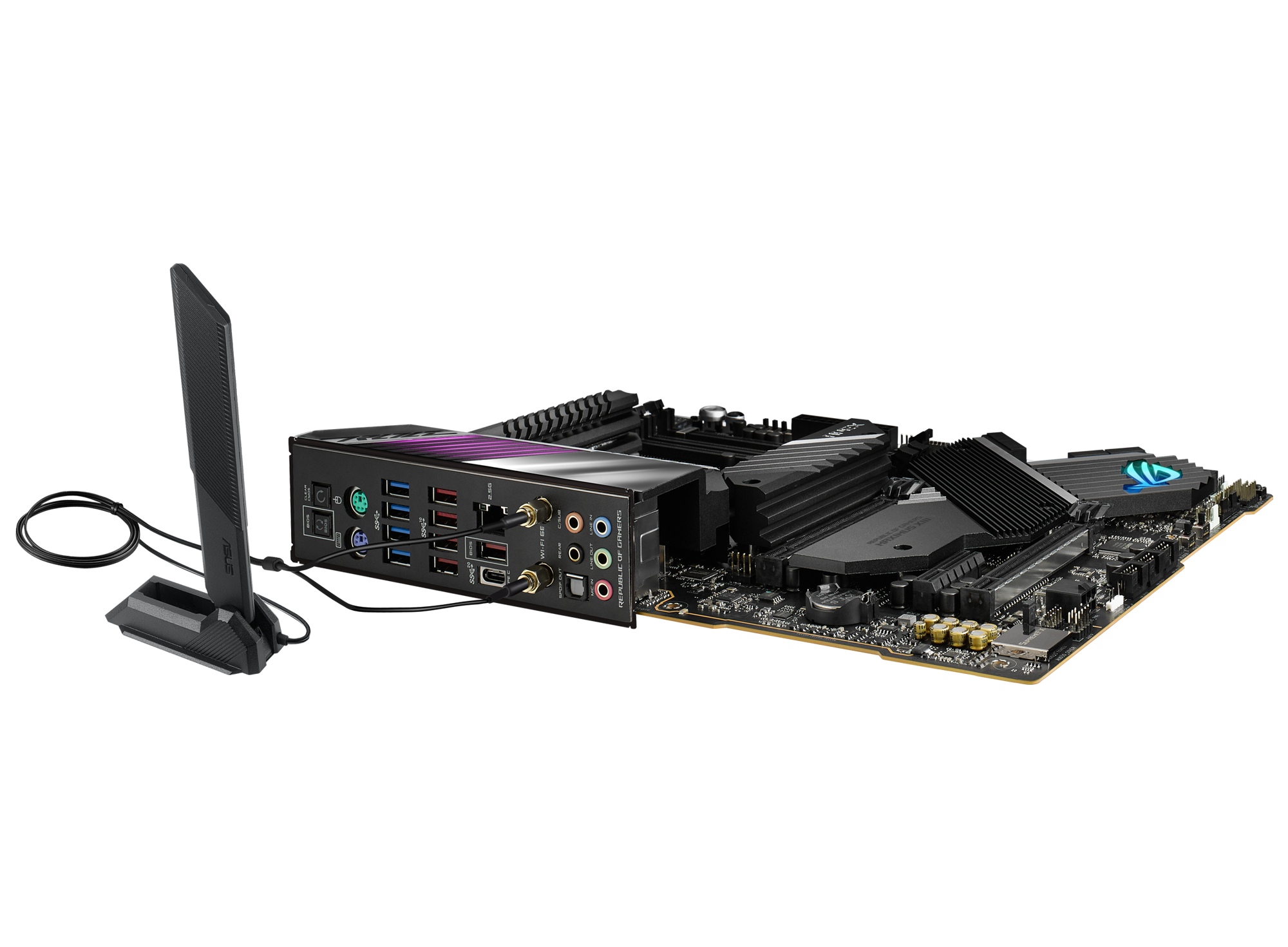

3. WiFi 6E Antenna:
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
4. Adjustable Design:
Four-way positioning enables better signal reception.
5. Magnetic Base:
A powerful magnetic base secures the antenna on the top or side of the PC case.
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
2. Dual Intel 2.5 Gb Ethernet:
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
3. WiFi 6E Antenna:
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
4. Adjustable Design:
Four-way positioning enables better signal reception.
5. Magnetic Base:
A powerful magnetic base secures the antenna on the top or side of the PC case.
PCIe 4.0-Ready
ROG Maximus XIII Apex is equipped with four onboard M.2 slots, with two offering PCIe 4.0 support for the latest GPUs and high-speed SSDs. To cope with the heat generated by high-performance M.2 SSDs, each drive is protected by a dedicated M.2 heatsink and an embedded backplate.
ROG DIMM.2
The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add metal heatsinks, helping to control thermals for maximum performance while elevating the aesthetics.
USB 3.2 Gen 2x2
A USB 3.2 Gen 2x2 Type-C® port at the rear and an additional front panel header onboard provide data transfer speeds of up to 20 Gbps for the latest devices.
ROG SupremeFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In Maximus III Apex, SupremeFX utilizes the ALC4080 codec to increase playback resolution across all channels. The front-panel output is streamed through an integrated Savitech amplifier that’s capable of driving a wide range of gaming headsets and high-fidelity headphones.
1. Audio Line Shielding: Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
2. Savitech SV3H712 Amplifier: The integrated Savitech amplifier greatly improves THD+N performance from 72 dB to 83 dB to deliver pristine audio quality.
3. ALC 4080 Codec: The ALC4080 codec improves playback audio resolution from 192 kHz to 384 kHz across all channels.
4. Switching MOSFETS: A unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
5. Nichicon® CAPS: These fine-quality Japanese-made components produce a warmer, natural sound with exceptional clarity and fidelity.
1. Audio Line Shielding: Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
2. Savitech SV3H712 Amplifier: The integrated Savitech amplifier greatly improves THD+N performance from 72 dB to 83 dB to deliver pristine audio quality.
3. ALC 4080 Codec: The ALC4080 codec improves playback audio resolution from 192 kHz to 384 kHz across all channels.
4. Switching MOSFETS: A unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
5. Nichicon® CAPS: These fine-quality Japanese-made components produce a warmer, natural sound with exceptional clarity and fidelity.
AIDA64 Extreme
ROG Maximus XIII series includes a one-year AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be viewed on the desktop, sent to dedicated displays, or the OLED panels of ROG AIO liquid coolers*.
ROG x AIDA64 Extreme
Hardware Monitor Display
AURA SYNC
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, mice and keyboards to give your setup a unified look.
